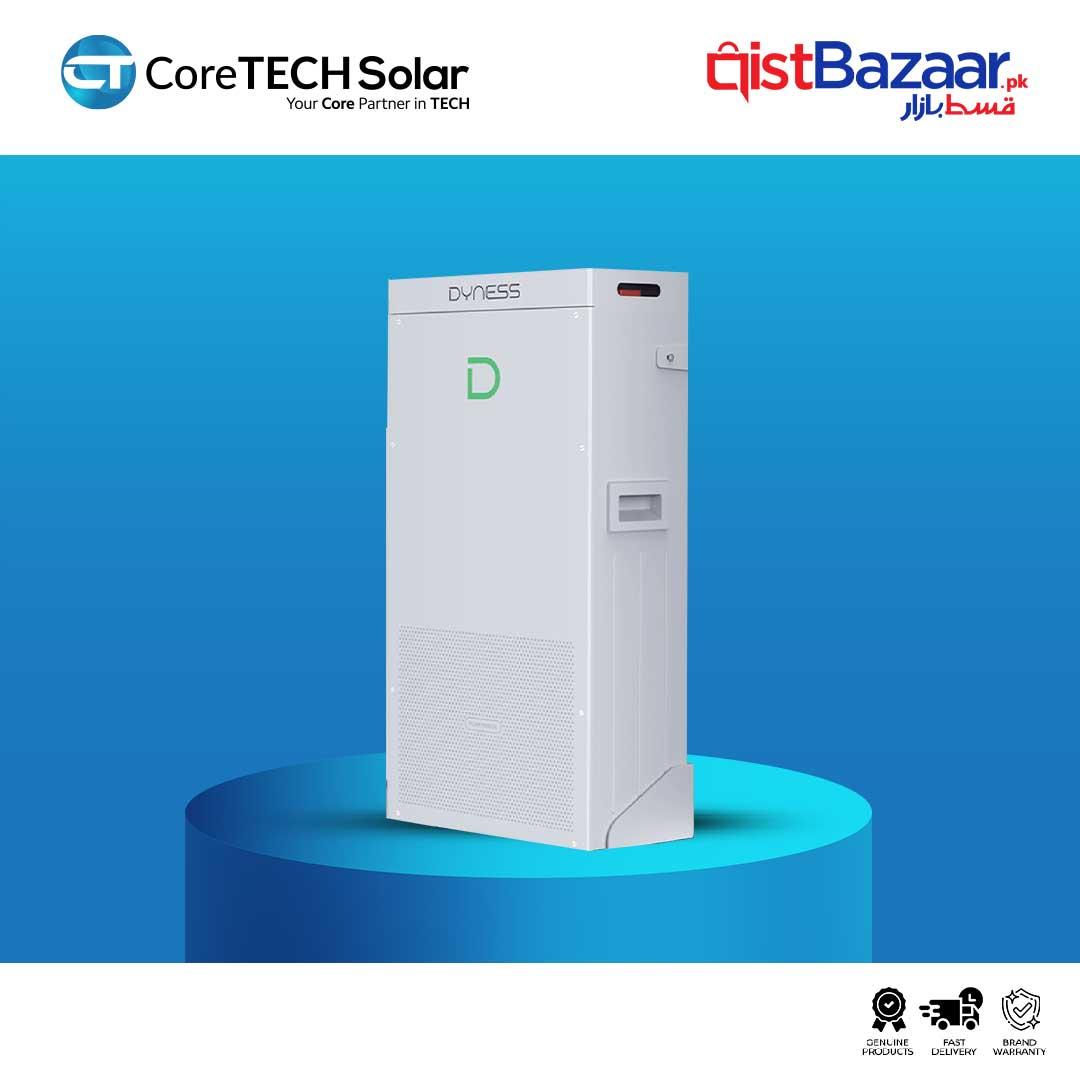

Buy Dyness PowerBrick 14.336kWh 51.2V – 280Ah IP20 Lithium-ion Battery on easy monthly installments. Low Down-Payment with Company Warranty and FREE & Fast Delivery. Choose your installment plan at the best price in Pakistan now !
CoreTECH Solar| Model | PowerBrick |
| Battery Type | LiFePO4 |
| Nominal Battery Energy | 14.336kWh |
| Nominal Voltage/Capacity | 51.2V/280Ah |
| Recommended Charge/Discharge Current | 140A (0.5C) |
| Max. Charge Current | 200A (0.7C) |
| Max. Discharge Current | 200A (0.7C) |
| Peak Discharge Current | 300A (2mins, 25°C) |
| Depth of Discharge | 95% |
| Communication | CAN/RS485 |
| Cycle Life | ≥8000 cycles / 7 Years |
| Protection Level | IP20 |
| Net Weight | 114kg |
| Dimension [W*D*H] | 435*233*857mm (No wall-mounted bracket) |
| Regulating wheel (4pcs) | 1kg, 80/80/800mm (optional) |
| Top cover | 2kg, 422/232/60mm (optional) |
| Maximum Parallel Modules | 50 |
| Charging Temp. Range | 0~55°C |
| Discharging Temp. Range | -20~55°C |
| WIFI Module | Built-in WIFI module; APP OTA function |
| Fire Protection System | Built-in aerosol fire extinguisher |
| Certification & Safety Standard | UN38.3/CE-EMC/IEC62619/GOST-R |
| Compatible Inverters | Solis/Deye/Luxpower/Voltronic/Hoymiles/Growatt/Goodwe/SMA/Victron/Ingeteam/Delios/SAJ/APS etc. |
| Warranty | 7 Years |
